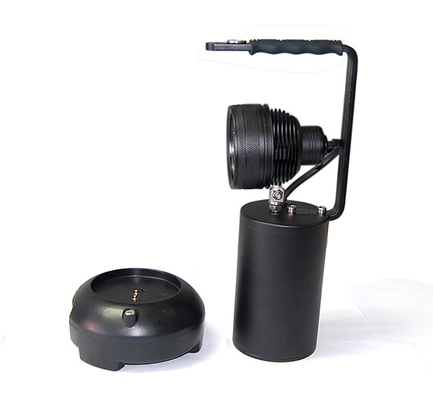

Rechargeable safety hand lamp
Shenzhen Nibbe Optoelectronic Technology Co., Ltd specializes in R&D, manufacture and sales of
high power LED lighting products. These LED lights include fixed LED Explosion proof lights, porta
ble led explosion proof lights, LED street lights, LED floodlights, replaceable traffic lights, tunnel
lights, indoor led lights, etc., which are widely applied in oil fields, oil refineries, offshore oil
platform, power plants, gas stations, roadsides, tunnels, landscape lighting, special purpose
and other business fields.
Rechargeable safety hand lamp
Specification:
Power: 3W hand lamp
LED: 1 x CREE Q4
LEDlifespan: ≥100,000 hrs.
Battery:2*18650 Li-ion , 3.7V /4.4Ah
Battery circulating time : ≈1000 times
Case protection grade : IP68
Battery charging time : ≈8hrs.
Battery burn time: working light 15hrs. / Highlight 7hrs.
MaxLumen value : 145 lm
Illuminance at 1 meter : High light 5900Lux / Working light 3200Lux
Lightbeam diameter in center: 120mm
Dimension : φ40*196mm
Weight : 305g
Switch: magnet control switch
Lens:6mm toughened glass
Reflector material: aluminum
casematerial: 6063-T6 aluminum
Surfacing: anodized finishing
Rechargeable safety hand lamp
Description:
1 x CREE Q4high-luminance white LED with lifespan of more than 100,000 hours.
High-energy18650 Li-ion batteries, 600 times circulating life,with protection circuit.
Machined6063-T6 aircraft aluminum case with anodized finishing is tough andlightweight, insulative,extremely durable and resists crushing.
Toughenedglass with 6mmthickness as lens that assures clear and bright beam,scratch-proof .
Aluminmumreflector focuses the LED’s light to creat a smooth,near-flawless beam andhas a better radiating than plastic.
Nicewaterproof design, can be used under water.
Intelligent electronic willprevent over-charging over-discharging and short circuit.
Stable current can providestable brightness.Protection circuit will shut down automatically when thebattery reaches a low voltage value.
Three output levels—high light,working light and strobe. . Withbattery capacity forecast.
Rechargeable safety hand lamp
Widely used in patrol, overhaul, emergency rescue, cargo loading and unloading and other inside and outside places to used as movable light;
Applied to oil field, power, petrochemical, railway, metallurgy, mine, public security and fire fighting.
2. Features:
Product is designed for whole sealing to ensure dust-proof and water-proof, it can be used under water. It is also can be used in all kinds of inflammable and explosive occasions because it’s good explosion-proof performance.
High hardness alloy shell can withstand strong shock, so it can be applied in all kinds of severe conditions.
Imported high power LED light source, constant current output to ensure light’s steady brightness.
Battery adopts high-energy lithium battery featured with large capacity, long lifespan, and can be recycling, it is economical and environmental.
Switch is on the head of body, it has two light type: strong light and work light.
The light has the self-protection function, the light keeps flashing and automatically power off when there is shortage of power.
The circuit has protections of over-discharging and short circuit. The charger equips with device to display status for over-charging and charging.
Easy for charging ,it can be charged at 85VAC~265VAC.
3. Operations and Cautions:
Switch is on the head of flashlight. When user continues to press it ,the flashlight will display strong light, work light, and flash light by turns. Putting two plugs into charging holes accordingly when charging is required.
It can be used anytime within 6 months when fully charged for one time; if it remains standby status for a long time, it should be charged at least one time within half year.
Try to avoid charging or storing on the high temperature occasions in order to prolong the light’s and battery’s service life.
Do not disassemble hardware and seal components to avoid disabling light’s performance and capability. If light must be disassembled, it should be handled by professional people.
Clean it immediately after using it underwater or in the corrosive environment to avoid making lens dirty, otherwise it will effect transparency.
Application:
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.
